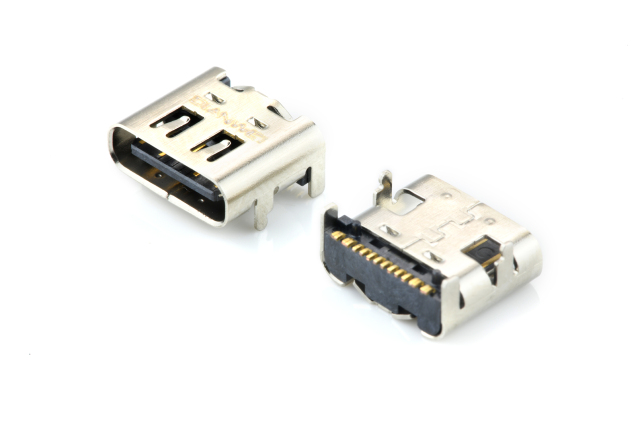

2.02A0 Series Single Row, SMT, Type-C 16Pin with Clips (L=7.35mm)

Name: 2.02A0 Series Single Row, SMT, Type-C 16Pin with Clips (L=7.35mm)
Brand: DIANWEI | FFC/FPC/ZIF/LIF & Fakra Connectors
Availability: InStock
Rating: 5 (1 reviews)

Operating Temprature	-40 ~ +85℃
Rating Voltage	48V/AC 1 minute
Rating Current	12A
Contact Resistance	40mΩ Max
Insulation Resistance	500M Min
Durability	10000 Times Min

GET A QUOTE

Description

[ Application ]

Medical electronics

Automotive electronics

Smart Home

Consumer electronics

[ Overview ]

Lower height on the board, lightweight and thin, small footprint
Operating temperature: -40~+85℃, UL94-V0
When inserted the cable and locked, the latch won’t pop open
Dual-contact points to ensures reliable connection

[ List of Connectors (Specification Sheet, 2D drawings, 3D models, Distributor inventory) ]

Detailed specifications and documentation for each item can be found on item details page.

Part No.	2D/ Specification Sheet	3D Models	Stock	Connector Type	Purchase Unit (PCS)	RoHS (EU)2015/863	SVHC
2.02A0 Series		3D Drawing	Available	Connector	500	Yes	Non-Contained
