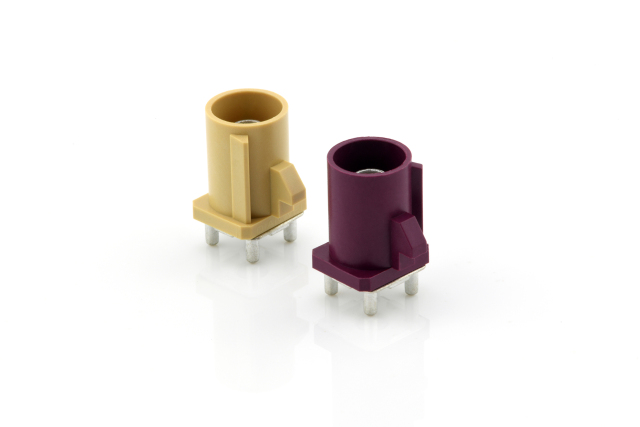

7.03A1 Series Vertical Fakra (Male) Connector

Name: 7.03A1 Series Vertical Fakra (Male) Connector
Brand: DIANWEI | FFC/FPC/ZIF/LIF & Fakra Connectors
Availability: InStock
Rating: 5 (1 reviews)

Electrical Feature
Rated Current: 1A
Rated Voltage:60V DC
Withstanding Voltage: 500V
Insulation Resistance:1000MQ
Operation Temperature:-40~105
VSWR: 0-3GHz 1.28Max
3-6GHz 1.58Max

Material
Outer Conductor: Zinc Alloy
Center Conductor: Copper Alloy
Dielectric: Thermoplastic
Plastic Housings: Thermoplastic

Mechanical feature
Mating cycles25times
Mating force25N
De-mating force 2N
Retention force latch 110N

Type:

7.03A1.000820-A

7.03A1.000821-B

7.03A1.000822-C

7.03A1.000823-D

7.03A1.000824-E

7.03A1.000825-F

7.03A1.000826-G

7.03A1.000827-H

7.03A1.000828-I

7.03A1.000829-K

7.03A1.00082A-L

7.03A1.00082B-M

7.03A1.00082C-N

7.03A1.00082D-Z

color:

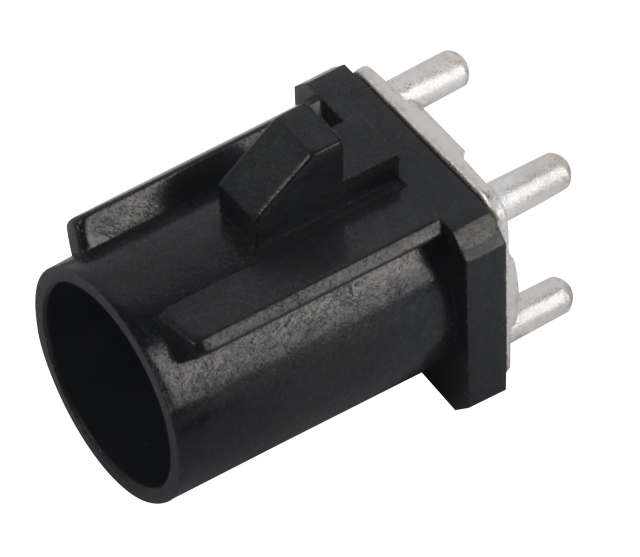

A TYPE Black/9005

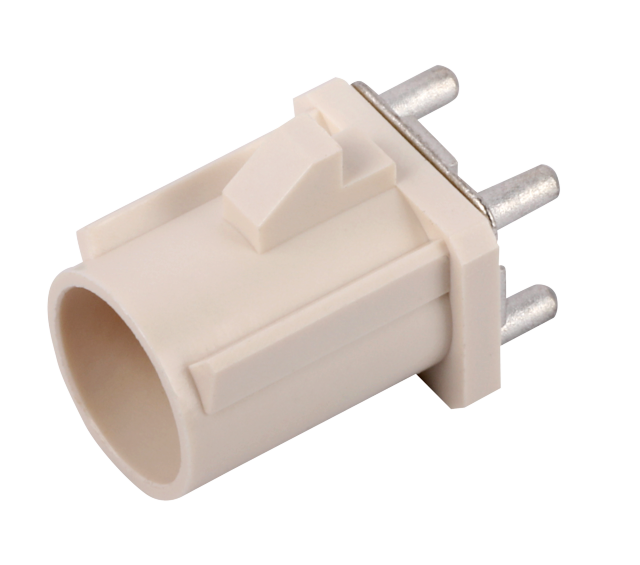

B TYPE White/9001

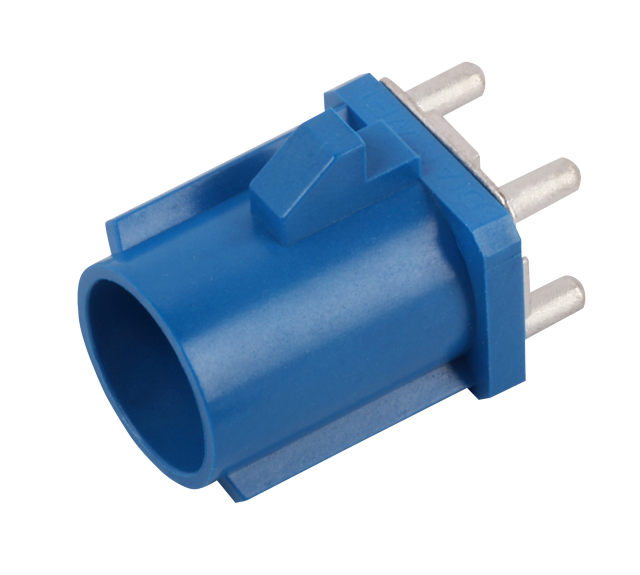

C TYPE Blue/5005

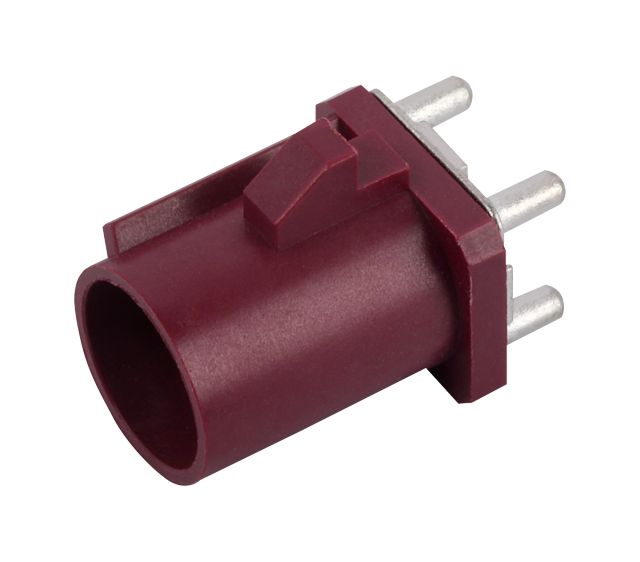

D TYPE Bordeaux/4004

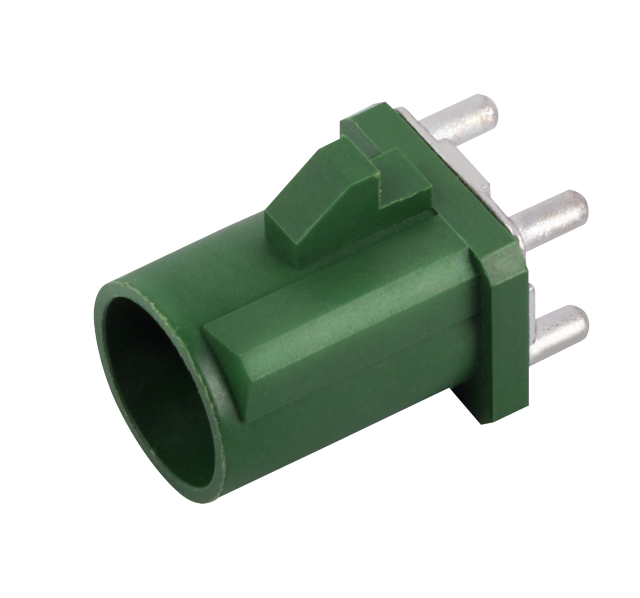

E TYPE Green/6002

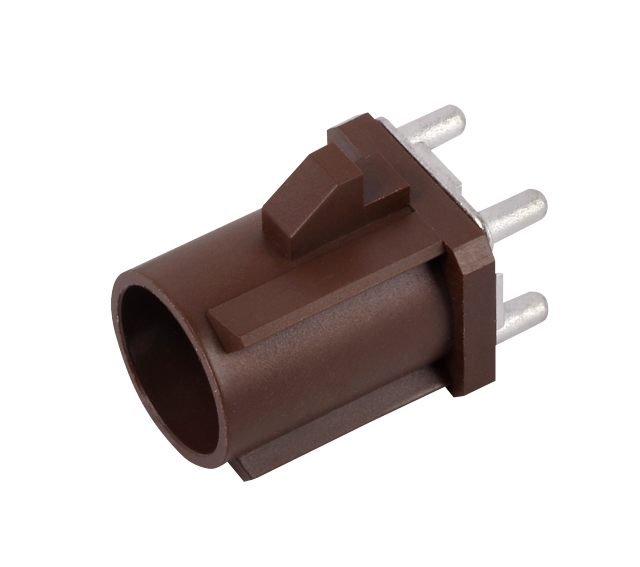

F TYPE Brown/8011

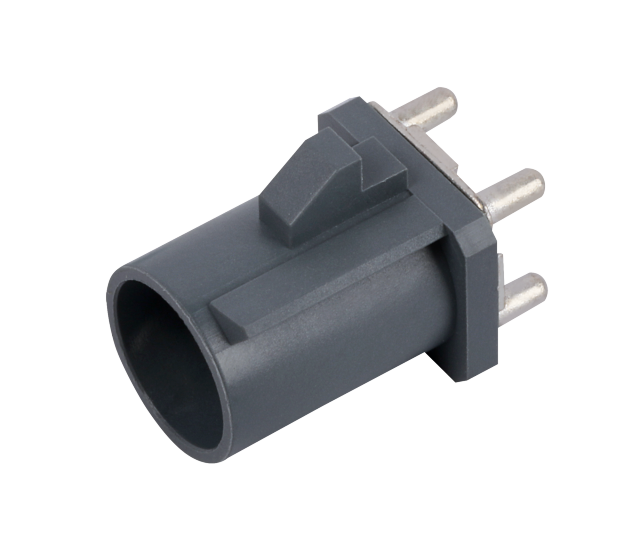

G TYPE Grey/7031

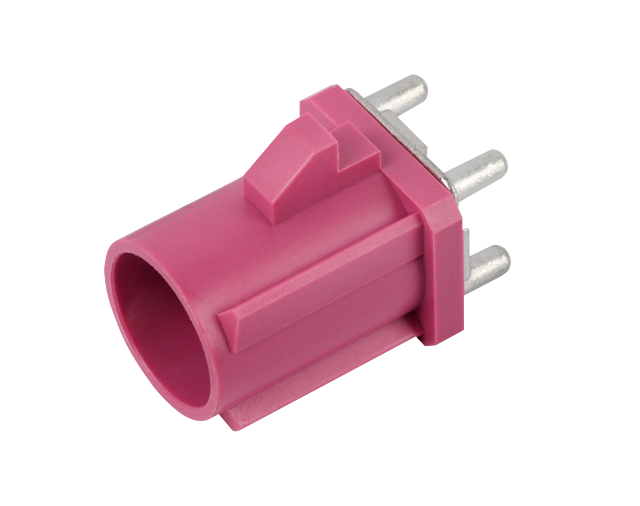

H TYPE Violet/4003

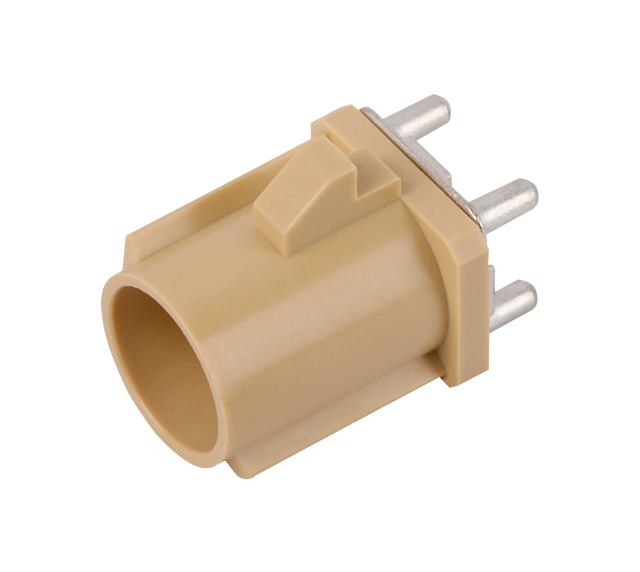

ITYPE Beige/1001

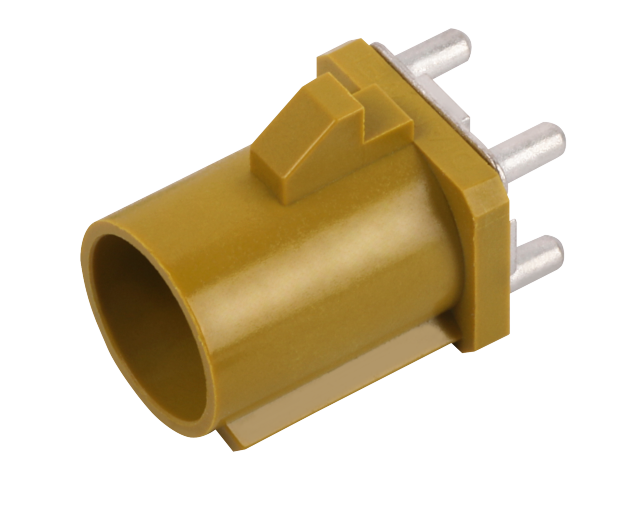

K TYPE Curry/1027

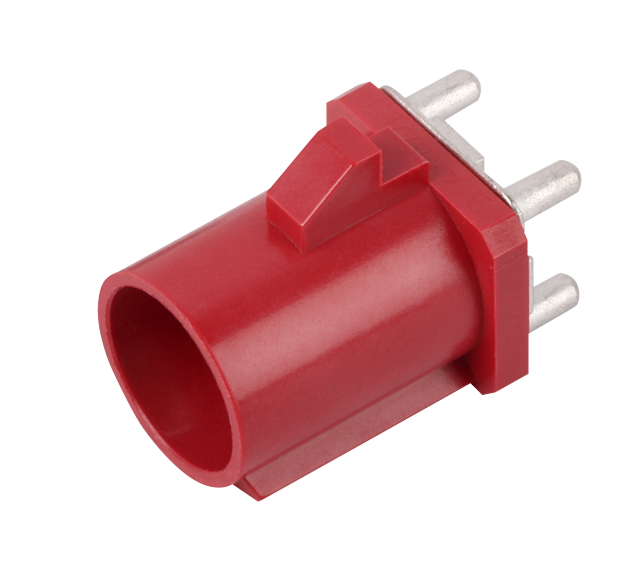

L TYPE Camine Red/3002

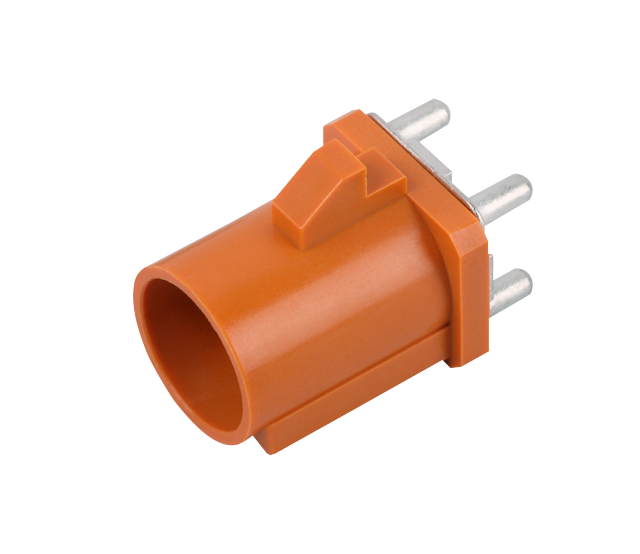

M TYPE Pastel Orange/2003

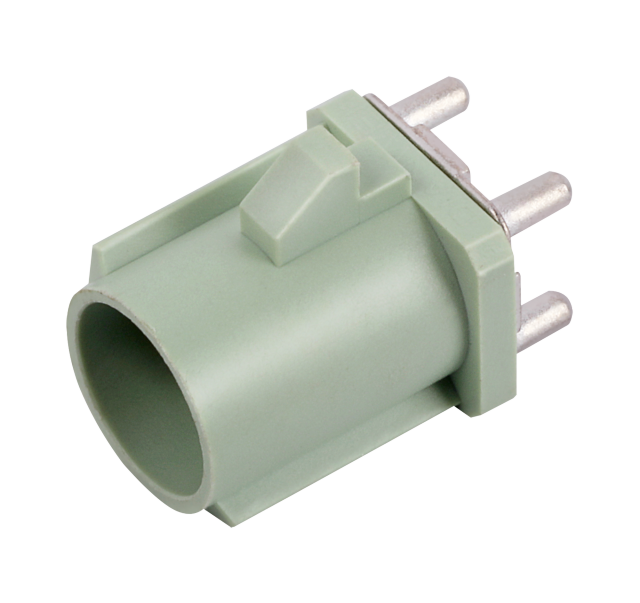

N TYPE Pastel Green/6019

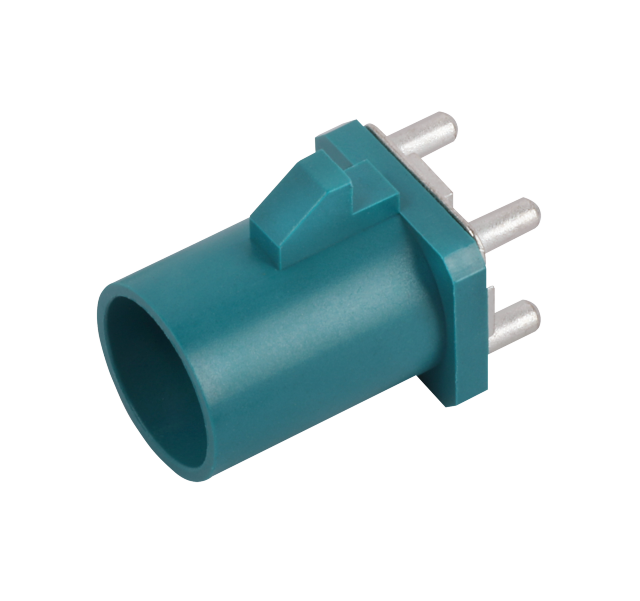

Z TYPE Water Blue/5021

GET A QUOTE

Description

[ Application ]

Automotive electronics

[ Overview ]

Stable connection with pressure casting metal part
Operating temperature: -40~+105℃, UL94-V0
Standard Color Masterbatch
Fit with Female parts from other brands

[ List of Connectors (Specification Sheet, 2D drawings, 3D models, Distributor inventory) ]

Detailed specifications and documentation for each item can be found on item details page.

Part No.	2D/ Specification Sheet	3D Models	Stock	Connector Type	Purchase Unit (PCS)	RoHS (EU)2015/863	SVHC
7.03A1 Series Vertical Fakra (Male) Connector		7.03A1-Z TYPE.step	Available	Receptacle	200/Reel	Yes	Non-Contained
