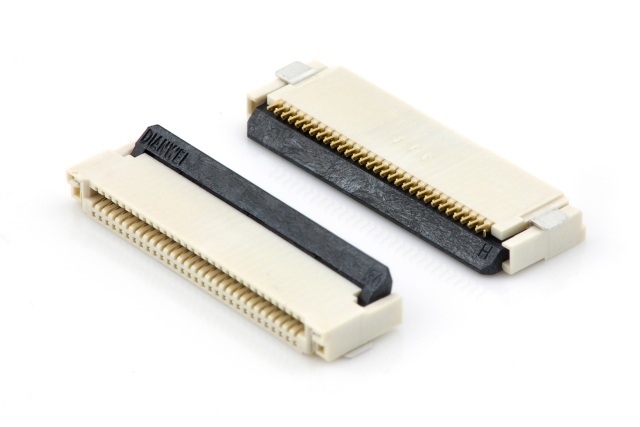

8.01A0 Series P0.5mm, Dual Contact,Rear Flip, H=2.0mm

Name: 8.01A0 Series P0.5mm, Dual Contact,Rear Flip, H=2.0mm
Brand: DIANWEI | FFC/FPC/ZIF/LIF & Fakra Connectors
Availability: InStock
Rating: 5 (1 reviews)

Alternative PN#	8.19A0
Contact Pitch	0.5
Board Pitch	0.5
Available PlN	4-60PIN
Flip Close Height(mm)	2.00
Flip Open Height(mm)	3.10
Flip Open Height(mm)	5.32
Flip Close Depth(mm)	5.90
Contact A Depth (mm）	1.36
Contact B Depth (mm)	1.36
Insertion Depth(mm)	2.10
FPC Thickness(mm)	0.30±0.02
Current Rating	0.5A/PIN
Contact Points	Top& Bottom
MPQ(pcs)	1500

GET A QUOTE

Description

[ Application ]

Medical electronics

Automotive electronics

Smart Home

Consumer electronics

[ Overview ]

Lower height on the board, lightweight and thin, small footprint
Operating temperature: -40~+85℃, UL94-V0
When inserted the cable and locked, the latch won’t pop open
Dual-contact points to ensures reliable connection

[ List of Connectors (Specification Sheet, 2D drawings, 3D models, Distributor inventory) ]

Detailed specifications and documentation for each item can be found on item details page.

Part No.	2D/ Specification Sheet	3D Models	Stock	Connector Type	Purchase Unit (PCS)	RoHS (EU)2015/863	SVHC
8.01A0 Series	2D Drawing	4Pin 6Pin 8Pin 9Pin 10Pin 12Pin 14Pin 15Pin 16Pin 18Pin 20Pin 22Pin 24Pin 26Pin 28Pin 30Pin 32Pin 34Pin 35Pin 36Pin 40Pin 41Pin 42Pin 45Pin 50Pin 51Pin 52Pin 54Pin 55Pin 60Pin	Availiable	ZIF/LIF	1500	Yes	Non-Contained
