Alternative PN# |
8.36A0 |
|
Contact Pitch |
1.00 |
|
Board Pitch |
1.00 |
|
Available PlN |
6-30PIN |
|
Flip Close Height(mm) |
4.35 |
|
Flip Open Height(mm) |
6.20 |
|
Flip Open Height(mm) |
4.00 |
|
Flip Close Depth(mm) |
4.00 |
|
Contact A Depth (mm） |
1.53 |
|
Contact B Depth (mm) |
1.15 |
|
Insertion Depth(mm) |
2.20 |
|
FPC Thickness(mm) |
0.30±0.02 |
|
Current Rating |
0.5A/PIN |
|
Contact Points |
Bottom |
|
MPQ(pcs) |
1000 |
| Part No. | 2D/ Specification Sheet | 3D Models | Stock | Connector Type | Purchase Unit (PCS) | RoHS (EU)2015/863 | SVHC |
|---|---|---|---|---|---|---|---|

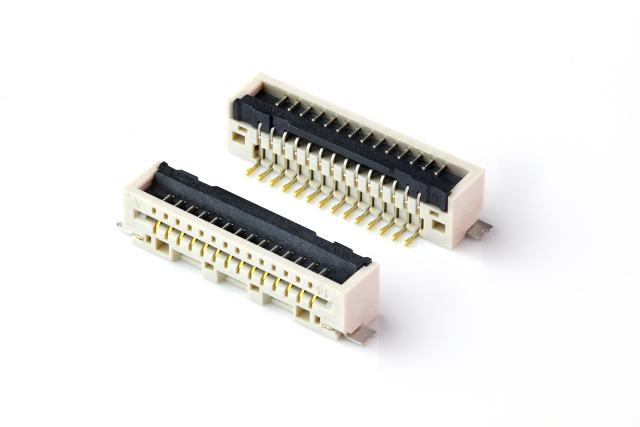

| 8.36A1 Series |  2D Drawing |
10 Pin26 Pin |
Availiable | ZIF/LIF | 2000 | Yes | Non-Contained |
