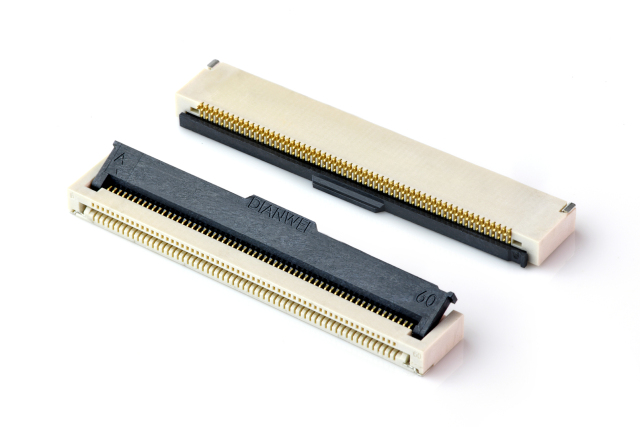

8.58A0 Series P0.5mm, Bottom Contact, Rear Flip, H=2.55mm

Name: 8.58A0 Series P0.5mm, Bottom Contact, Rear Flip, H=2.55mm
Brand: DIANWEI | FFC/FPC/ZIF/LIF & Fakra Connectors
Availability: InStock
Rating: 5 (1 reviews)

Alternative PN#
Contact Pitch	0.50
Board Pitch	0.50
Available PlN	10-100PIN
Flip Close Height(mm)	2.55
Flip Open Height(mm)	6.52
Flip Open Height(mm)	5.70
Flip Close Depth(mm)	6.97
Contact A Depth (mm）	2.15
Contact B Depth (mm)	1.75
Insertion Depth(mm)	4.20
FPC Thickness(mm)	0.30±0.03
Current Rating	0.5A/PIN
Contact Points	Bottom,Dual Individual Lever
MPQ(pcs)	1500

GET A QUOTE

Description

[ Application ]

Medical electronics

Automotive electronics

Smart Home

Consumer electronics

[ Overview ]

Lower height on the board, lightweight and thin, small footprint
Operating temperature: -40~+85℃, UL94-V0
When inserted the cable and locked, the latch won’t pop open
Dual-contact points to ensures reliable connection

[ List of Connectors (Specification Sheet, 2D drawings, 3D models, Distributor inventory) ]

Detailed specifications and documentation for each item can be found on item details page.

Part No.	2D/ Specification Sheet	3D Models	Stock	Connector Type	Purchase Unit (PCS)	RoHS (EU)2015/863	SVHC
8.58A0 Series	8.58A0 2D Drawing	60Pin	Availiable	ZIF/LIF	1500	Yes	Non-Contained
