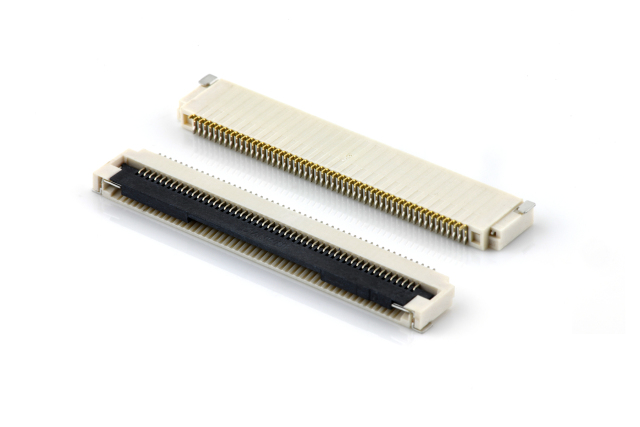

8.59A0 Series (EMI Shielding)P0.5mm, Bottom Contact, Front Flip, H=1.8mm

Name: 8.59A0 Series (EMI Shielding)P0.5mm, Bottom Contact, Front Flip, H=1.8mm
Brand: DIANWEI | FFC/FPC/ZIF/LIF & Fakra Connectors
Availability: InStock
Rating: 5 (1 reviews)

Alternative PN#
Contact Pitch	0.50
Board Pitch	0.50
Available PlN	4-128PIN
Flip Close Height(mm)	1.80
Flip Open Height(mm)	3.90
Flip Open Height(mm)	5.70
Flip Close Depth(mm)	5.70
Contact A Depth (mm）	1.30
Contact B Depth (mm)	1.05
Insertion Depth(mm)	4.30
FPC Thickness(mm)	0.30±0.03
Current Rating	0.5A/PIN
Contact Points	Bottom
MPQ(pcs)	2000

GET A QUOTE

Description

[ Application ]

Medical electronics

Automotive electronics

Smart Home

Consumer electronics

[ Overview ]

Lower height on the board, lightweight and thin, small footprint
Operating temperature: -40~+85℃, UL94-V0
When inserted the cable and locked, the latch won’t pop open
Dual-contact points to ensures reliable connection

[ List of Connectors (Specification Sheet, 2D drawings, 3D models, Distributor inventory) ]

Detailed specifications and documentation for each item can be found on item details page.

Part No.	2D/ Specification Sheet	3D Models	Stock	Connector Type	Purchase Unit (PCS)	RoHS (EU)2015/863	SVHC
8.59A0 Series	8.59A0 2D Drawing	contact sales	Availiable	ZIF/LIF	2000	Yes	Non-Contained
